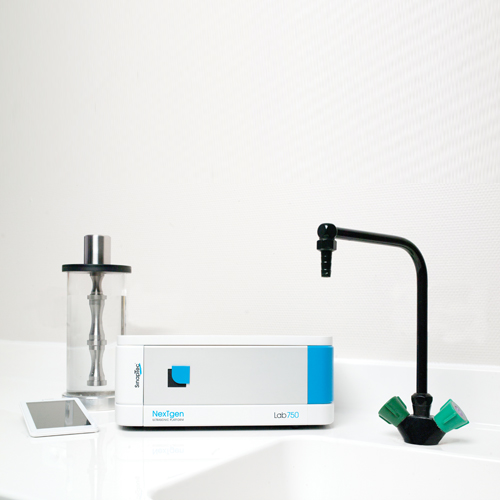

NexTgen LAB750 FOR PIPE
|
| CONTINUOUS max. (WRMS) POWER |
750 |
| FREQUENCY (kHz) |
22 |
| CONTINUOUS MODE |
yes |
| PULSE MODE |
yes |
| VOLTAGE (V) |
220-240 |
| OTHER VOLTAGE |
on request |
| DIMENSIONS (LxWxH) |
390x145x148mm |
| WEIGHT |
4,3kg |
| TOUCH SCREEN INTERFACE |
Pushbutton/Footswitch |
| INTERFACE TACTILE |
LabTablet |
| COMMUNICATION AND CONTROL |
Ethernet |
| PC-SOFT NexTgen “LabPremium” |
optional |
| TEMPERATURE SENSOR |
optional |
|
|
|
|

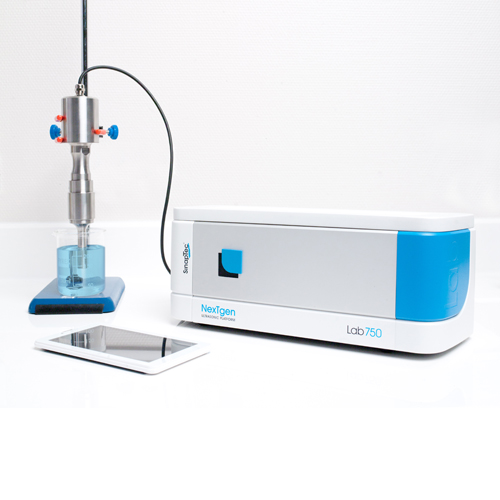

NexTgen LAB750 FOR AXIAL PROBES
|
| CONTINUOUS max. (WRMS) POWER |
750 |
| FREQUENCY (kHz) |
22 |
| CONTINUOUS MODE |
yes |
| PULSE MODE |
yes |
| VOLTAGE (V) |
220-240 |
| OTHER VOLTAGE |
on request |
| DIMENSIONS (LxWxH) |
390x145x148mm |
| WEIGHT |
4,3kg |
| TOUCH SCREEN INTERFACE |
Pushbutton/Footswitch |
| INTERFACE TACTILE |
LabTablet |
| COMMUNICATION AND CONTROL |
Ethernet |
| PC-SOFT NexTgen “LabPremium” |
optional |
| TEMPERATURE SENSOR |
optional |
|
|
|
|

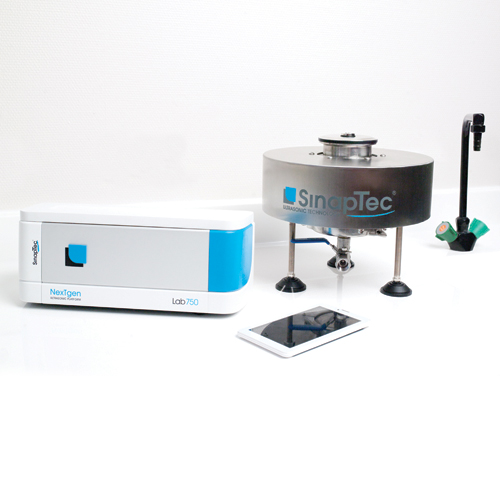

NexTgen LAB750 FOR RADIAL PROBES
|
| CONTINUOUS max. (WRMS) POWER |
750 |
| FREQUENCY (kHz) |
22 |
| CONTINUOUS MODE |
yes |
| PULSE MODE |
yes |
| VOLTAGE (V) |
220-240 |
| OTHER VOLTAGE |
on request |
| DIMENSIONS (LxWxH) |
390x145x148mm |
| WEIGHT |
4,3kg |
| TOUCH SCREEN INTERFACE |
Pushbutton/Footswitch |
| INTERFACE TACTILE |
LabTablet |
| COMMUNICATION AND CONTROL |
Ethernet |
| PC-SOFT NexTgen “LabPremium” |
optional |
| TEMPERATURE SENSOR |
optional |
|
|
|
|

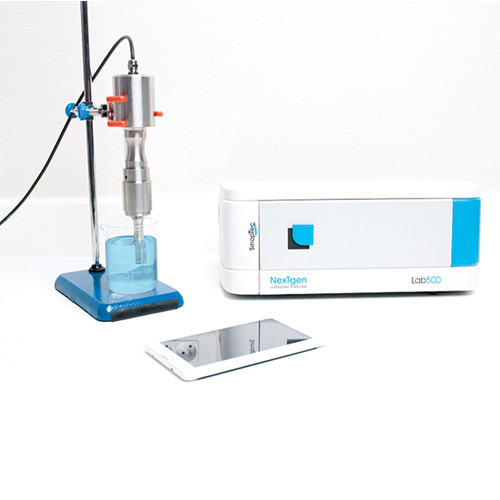

NexTgen LAB500 FOR AXIAL PROBES
|
| CONTINUOUS max. (WRMS) POWER |
500 |
| FREQUENCY (kHz) |
20 |
| CONTINUOUS MODE |
yes |
| PULSE MODE |
yes |
| VOLTAGE (V) |
220-240 |
| OTHER VOLTAGE |
on request |
| DIMENSIONS (LxWxH) |
390x145x148mm |
| WEIGHT |
4,3kg |
| TOUCH SCREEN INTERFACE |
Pushbutton/Footswitch |
| INTERFACE TACTILE |
LabTablet |
| COMMUNICATION AND CONTROL |
Ethernet |
| PC-SOFT NexTgen “LabPremium” |
optional |
| TEMPERATURE SENSOR |
optional |
|
|
|
|

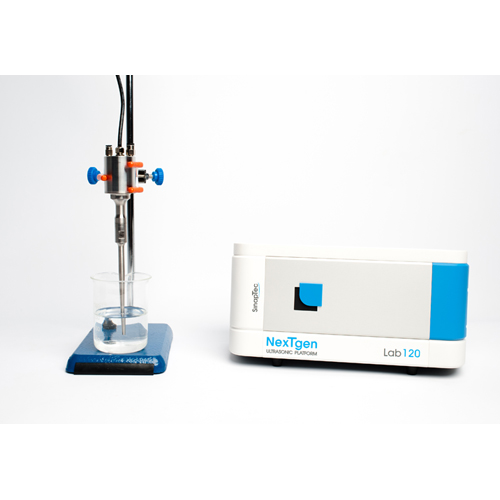

NexTgen LAB120 FOR AXIAL PROBES
|
| CONTINUOUS max. (WRMS) POWER |
120 |
| FREQUENCY (kHz) |
35 |
| CONTINUOUS MODE |
yes |
| PULSE MODE |
yes |
| VOLTAGE (V) |
110-240 |
| OTHER VOLTAGE |
- |
| DIMENSIONS (LxWxH) |
330x145x148mm |
| WEIGHT |
3,5kg |
| TOUCH SCREEN INTERFACE |
Pushbutton/Footswitch |
| INTERFACE TACTILE |
LabTablet |
| COMMUNICATION AND CONTROL |
Ethernet |
| PC-SOFT NexTgen “LabPremium” |
optional |
| TEMPERATURE SENSOR |
optional |
|
|
